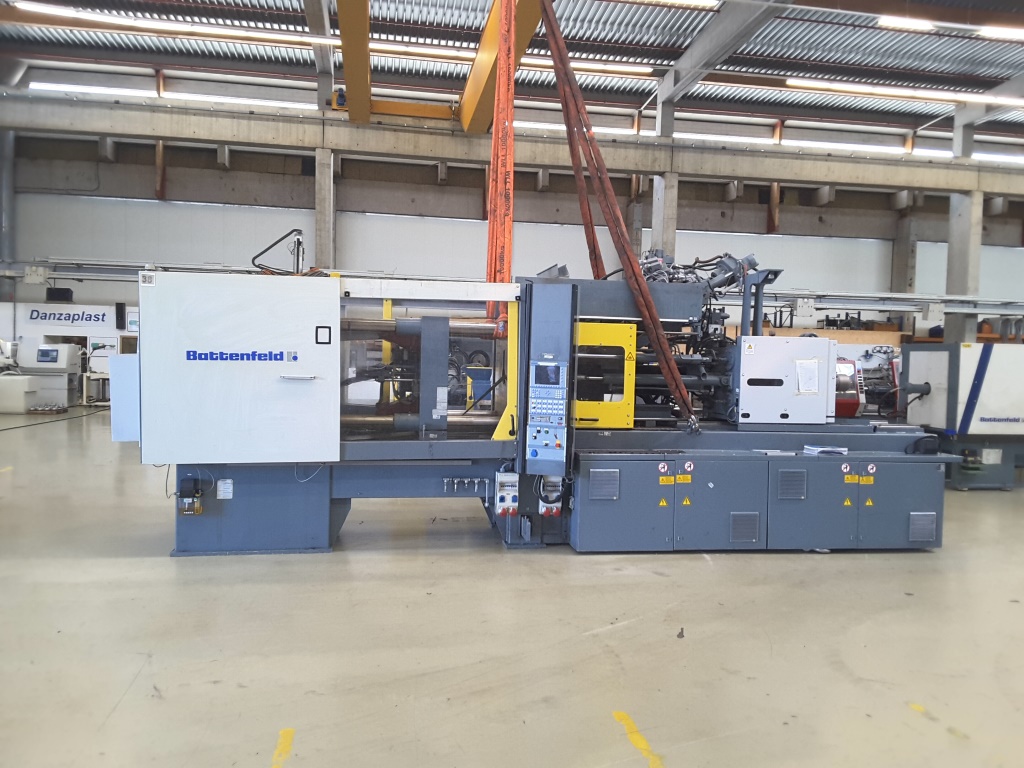

Battenfeld BA 3500 / 1900 + 630 S BK U 9000 C

Details
Manufacturer: Battenfeld
Type of machine: BA 3500/1900+630S
Year: 2000
Delivery time: Immediately
Terms of Delivery: Now
Location: Awans - Belgium
Controlversion: Unilog 9000 C
Screen text: German / Englisch
Operating Hours 43.015 Hrs.
Price: on request

Technical details

Clamping unit
Clamping force: 3.500 kN
Size of mould platens (h x v): 1010 mm x 1010 mm
Distance between tie bars (h x v): 710 x 710 mm
Mould opening stroke: 1305 mm
Mould height min.: 250 mm
Mould height max.: 690 mm
Max daylight: 1305 mm
Hydraulic ejector - stroke: 200 mm
Ejector force forward/backward:  kN

Injection unit
  Unit 1900       Unit 630
Screw diameter: 65                        45       mm
Ls/D ratio:     22                    20
Injection pressure: 1777                  2182    bar
Stroke volume: 1078                    286    ccm
Shot weight, PS: 981                     260     g
Injection stroke:                                       mm
Screw speed:  1/min
Plasticising rate max.: 68                          27     g/s
Nozzle pressure:                                        kN
Electric and Hydraulic Equipment
Installed heating capacity: 67 kW
Adjustable barrel heating zones:
Pump power 67 Kw
Oil  960 L




Dimensions und weights
Total machine weight: 17.000 kg
Dimensions        ( L x B x H ) 7,5 x 2,1 x 2,4 m
Accessories
- Robot interface Euromap 12
- 2 x cores

- Air Valve
